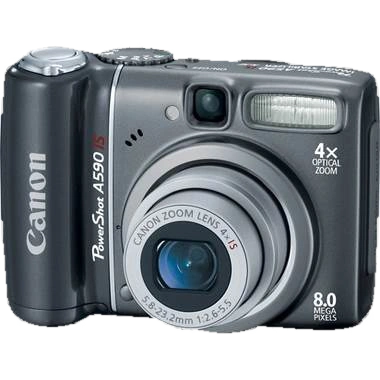

A590IS
From CHDK Wiki
Contents |
[edit] Camera technical data
| Release date: | January 2008 |
| Sensor CCD size: | 8.0 MP 1/2.5" |
| Lens (35mm equiv) zoom | 35-140, 4x |
| LCD size | 2.5" fixed |
| Card | SD / SDHC / MMC |
| Size (mm) | 94.3 x 64.7 x 40.8 |
| Weight (body) | 175 g |
Specification from Digital Photography Review: Canon PowerShot A470, A580 & A590 IS
[edit] Firmware info
Firmware information is given if ver.req exists on the SD.

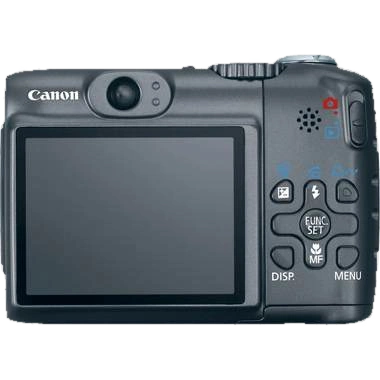

In PLAY mode (with ver.req) press FUNCSET and DISP simultaneously:
Canon PowerShot A590 IS P-ID:3176 NT D Firmware Ver GM1.01B NoError Jan 24 2008 20:41:51
On an A590IS bought from amazon.com in June 2008, the following was observed:
Power on in PLAY mode with ver.req file on SD card, press and hold FUNCSET, press DISP reveals the firmware version:
Canon PowerShot A590 IS P-ID:3176 NT D Firmware Ver GM1.00E NoError Jan 8 2008 16:57:22
subsequent press of DISP (while still holding FUNCSET) reveals:
Adj Ver.011.002
subsequent press of DISP (while still holding FUNCSET) reveals:
IS Firm Ver. 2.06 IS Param Ver. 2.01
If you power on in PLAY mode without ver.req on the SD card and press the FUNCSET and DISP buttons simultaneously, the screen shows:
Firmware Ver. 1.0.0.0
[ OK ]
[edit] Firmware Dump
A dump for the A590 now is available: [1] (dumped with the new udumper 2008).
Another dump (firm 1.00E) available :[2] (dumped with the new udumper 2008).
[edit] LED memory adresses
[edit] Current Status
The porting thread in the forum: A590
Relevant forum posts:
